WhatsApp Voice enables end-customers to initiate and receive calls via WhatsApp, creating a unified messaging and voice experience. Gupshup facilitates this capability through SIP integrations. This guide combines both product documentation and technical specifications for implementing incoming WhatsApp voice calls.

📘
If voice testing is not being done, please disable the voice icon. Leaving it enabled without proper setup can lead to the WABA being flagged or banned by Meta.

❗️
To enable WhatsApp Voice, the business must be on a messaging tier higher than 2,000.

Prerequisites

From Tech Provider & Business:

Active WhatsApp phone number on Gupshup.
SIP Voice setup with PSTN calling support.
Audio Codec: Opus/48000 (mandatory for compatibility).
Call Routing: Ensure seamless forwarding with no failures.
Firewall Configuration: No blocking of SIP or RTP traffic.

IP Whitelisting:

Location	Signalling	Backup Signalling	Media	Backup Media
Brazil	54.207.112.105	NA	166.117.124.43	76.223.74.49
US-East	75.101.139.202 3.225.218.184	52.44.196.193	75.2.97.111	35.71.187.91
Europe Milan	51.118.5.102	18.102.137.179	15.197.143.73	99.83.227.74

Location

Signalling

Backup Signalling

Media

Backup Media

Brazil

54.207.112.105

166.117.124.43

76.223.74.49

US-East

75.101.139.202

3.225.218.184

52.44.196.193

75.2.97.111

35.71.187.91

Europe Milan

51.118.5.102

18.102.137.179

15.197.143.73

99.83.227.74

Ensure your firewall allows traffic to/from ephemeral ports (1024–65535).*

How to Enable WhatsApp Voice on WABA

Step 1: Partner initiates enablement via Partner API with SIP configuration. Step 2: Gupshup forwards the request to Meta. Step 3: Meta responds:

✅ Success: "Enable Voice - OK"
❌ Failure: Error message with reason.

SIP Configuration Options

Basic SIP Call (No Registration)

Scenario:
- This configuration is used for direct SIP calling without registration. The SIP endpoint sends INVITE messages directly to the destination without establishing a prior registration.
Use cases:
- Direct SIP trunking between providers
- Anonymous SIP calls
- IP-to-IP direct calling
- Some wholesale VoIP scenarios
Example:

{
  "host": "ip/domain",
  "port": "50X1"
}

No REGISTER messages are sent
INVITE messages go directly to the destination
Often used with IP-based authentication instead of user credentials
May require specific firewall/NAT traversal handling

No REGISTER messages sent. INVITE goes directly. Used with IP-based authentication.

SIP Call With Authentication

Scenario:
- Registration is disabled, but authentication is still required.
  - This hybrid configuration is used when registration isn't needed but authentication is still required for outgoing calls. The SIP endpoint authenticates each INVITE rather than maintaining a registration.
Use Cases:
- SIP peering arrangements
- Some SIP trunking scenarios
- Cases where registration is undesirable but security is needed
- Load balancer or proxy scenarios
Example SIP Data

{
  "host": "ip/domain",
  "port": "50X1",
  "secret_key": "XXXXXXXX18fc94ac1488b86c0XXXXX"
}

The client will periodically re-register based on the expiration time
Authentication uses SIP digest authentication (usually MD5)

Troubleshooting MatrixTroubleshooting Matrix

Symptom	Likely Cause
No INVITE received	IP not whitelisted
INVITE received but no audio	RTP ports blocked
The call fails immediately	Opus missing
One-way audio	ICE issue
Some numbers work; others fail	IP whitelist incomplete

TCP Transport Protocol Required

Scenario
- This configuration forces TCP as the transport protocol instead of the default UDP. TCP is used when message reliability or larger message sizes are required.
Use Cases
- Large SIP messages (many headers or SDP)
- Networks with UDP reliability issues
- Certain security requirements
- NAT traversal scenarios where TCP works better
Example SIP Data:

{
  "username": "911XXXX258312",
  "host": "ip/domain",
  "port": "50X1",
  "secret_key": "XXXXXXXX18fc94ac1488b86c0XXXXX",
  "force_tcp": true
}

Uses SIP over TCP (RFC 3261)
TCP provides reliable delivery, but with higher overhead
The default SIP port remains 5060 (5061 for TLS)
May require different keepalive mechanisms than UDP
Often used as a fallback when UDP fails‌

SIP Configuration Metadata Format

[
  {
    "user": "911XXXX258312",
    "username": "911XXXX258312",
    "host": "ip-XX-232-3-XX.ap-XXX-1.compute.internal",
    "port": "50X1",
    "secret_key": "XXXXXXXX18fc94ac1488b86c0XXXXX",
    "force_tcp": false
  }
]

Parameter	Description	Type	Required	Default
user	Virtual SIP endpoint (user portion of SIP URI)	String	No	Dialed Number
username	SIP user or extension	String	No	Dialer Number
host	SIP server IP/domain	String	Yes
port	SIP URI forward port	String	Yes
secret_key	Password used for registration	String	No	Blank String
force_tcp	Whether to use TCP instead of UDP	Bool	No	false

📘
username@host:port : “sip:[email protected]:5071”. ( sip URI )

SIP INVITE Flow (For Incoming Calls)

+--------+         +----------+         +--------+
 | Caller |         |  SIP     |         | Callee |
 | Agent  |         |  Server  |         | Agent  |
 +--------+         +----------+         +--------+
     |                  |                     |
     |---- INVITE ----->|                     |
     |<-- 100 Trying ---|                     |
     |                  |---- INVITE -------> |
     |                  |<-- 180 Ringing ---- |
     |<-- 180 Ringing --|                     |

SIP works over Symmetric Response Routing — RFC3581

Sample SIP INVITE Payload

INVITE sip:[email protected]:5071;transport=udp SIP/2.0
Via: SIP/2.0/UDP 166.117.124.43:5072;rport;branch=z9hG4bKZ9Dv1vHpca4eB
Max-Forwards: 70
From: "9191XXXXX" <sip:[email protected]>;tag=v7KcK833m2e9m
To: <sip:[email protected]:5071;transport=udp>
Call-ID: e6176416-6a18-123f-8691-0affefd2ea23
CSeq: 109543747 INVITE
Contact: <sip:[email protected]:5072>
User-Agent: Gupshup-gs_sip/1.0
Allow: INVITE, ACK, BYE, CANCEL, OPTIONS, MESSAGE, INFO, UPDATE, REFER, NOTIFY, PUBLISH, SUBSCRIBE
Supported: timer, path, replaces
Allow-Events: talk, hold, conference, presence, as-feature-event, dialog, line-seize, call-info, sla, include-session-description, presence.winfo, message-summary, refer
Content-Type: application/sdp
Content-Disposition: session
Content-Length: 445
X-WV-FROM: +9191XXXXX
X-WV-TO: +55XXXXX
X-FS-Support: update_display,send_info
Remote-Party-ID: "9191XXXXX" <sip:[email protected]>;party=calling;screen=yes;privacy=off

v=0
o=Gupshup 1768158046 1768158047 IN IP4 166.117.124.43
s=Gupshup
c=IN IP4 166.117.124.43
t=0 0
m=audio 37032 RTP/AVP 102 8 103 126
a=rtpmap:102 opus/48000/2
a=fmtp:102 useinbandfec=1; maxaveragebitrate=20000; maxplaybackrate=16000; sprop-maxcapturerate=16000; ptime=20; minptime=10; maxptime=60
a=rtpmap:8 PCMA/8000
a=rtpmap:103 telephone-event/48000
a=fmtp:103 0-16
a=rtpmap:126 telephone-event/8000
a=fmtp:126 0-16
a=ptime:20

Media & RTP Requirements

OPUS/48000 for codec, since the RTP clock rate is set at 48000 in SDP as per the RFC.
- Partners using Twilio can face some issues with their default support being for g711.
- fmtp can suggest maxaveragebitrate=20000;maxplaybackrate=16000;minptime=20;sprop maxcapturerate=16000;useinbandfec=1 , but with opus 48k
DTMF coming through the RTP data stream.
- rfc4733 ; a=rtpmap:126 telephone-event/8000
Symmetrical RTP Requirement
- rfc4961
- We send the Symmetric RTP Requirement
- Infra should allow symmetric RTP
- Ensures media flows through the same path as the signalling
- It will be expected that RTP packets to be sent from the same IP/port combination that was negotiated in SDP

GS-SIP Secure Media (SRTP) Configuration

Overview

GS-SIP supports secure media encryption using SRTP (Secure Real-time Transport Protocol).
When GS-SIP places outbound calls to your SIP infrastructure, your SIP server/trunk must correctly negotiate and respond to the SRTP offer.

How to enable secure media
Supported SRTP exchange protocols
SIP/SDP expectations
Required partner-side configurations
Sample INVITE and SDP exchanges

Supported Secure Media Protocols

GS-SIP supports the following SRTP exchange protocols:

Protocol	Description
DTLS	Uses DTLS-SRTP negotiation (Recommended)
SDES	Uses SDP Security Descriptions

Enabling Secure Media

To enable SRTP and TLS during SIP configuration, pass the following parameters:

{
  "username": "911XXXX258312",
  "host": "ip/domain",
  "port": "50X1",
  "secret_key": "XXXXXXXX18fc94ac1488b86c0XXXXX",
  "is_secure": true,
  "srtp_exchange_protocol": "DTLS"
}

Configuration Parameters

Parameter	Type	Description
is_secure	boolean	Set to `true` to enable SRTP and TLS
srtp_exchange_protocol	string	SRTP negotiation method (`DTLS` or `SDES`)

What GS-SIP Sends

When SRTP is enabled, GS-SIP sends SIP INVITEs with secure RTP media profiles.

DTLS Flow

SDP Media Line

m=audio 34550 RTP/SAVPF 102 101

DTLS SDP Attributes

a=fingerprint:sha-256 <certificate fingerprint>
a=setup:actpass

SDES Flow

SDP Media Line

m=audio 34550 RTP/SAVP 102 101

SDES SDP Attributes

a=crypto:1 AEAD_AES_256_GCM_8 inline:<key>
a=crypto:2 AEAD_AES_256_GCM inline:<key>
a=crypto:3 AEAD_AES_128_GCM_8 inline:<key>

Partner Requirements

Your SIP infrastructure must:

Support TLS transport
Support SRTP negotiation
Respond with matching SRTP parameters
Return valid SDP in 200 OK
Accept secure RTP media profiles:
- RTP/SAVPF
- RTP/SAVP

Required SIP Response

Your SIP server must respond with:

SIP/2.0 200 OK

Including:

Matching codec
Matching SRTP profile
Valid SDP security attributes

Example DTLS Response

m=audio 34708 RTP/SAVPF 102 101
a=fingerprint:sha-256 <partner fingerprint>
a=setup:active

Example SDES Response

m=audio 34246 RTP/SAVP 102 101
a=crypto:1 AEAD_AES_256_GCM_8 inline:<key>

Supported Codecs

GS-SIP currently supports:

Codec	Details
Opus	48kHz stereo
Telephone Event	DTMF events

Example:

a=rtpmap:102 opus/48000/2
a=rtpmap:101 telephone-event/48000

TLS Requirements

When is_secure=true:

TLS signaling is automatically enabled
SIP communication occurs over TLS transport
SIP URI example:

sip:number@host:5071;transport=tls

ICE Support

GS-SIP supports ICE attributes for media negotiation.

Example:

a=ice-ufrag:<value>
a=ice-pwd:<value>
a=candidate:<candidate details>

Call Flow Summary

DTLS Flow

GS-SIP INVITE
    ↓
Partner SIP Server
    ↓
100 Trying
    ↓
200 OK with DTLS fingerprint
    ↓
ACK
    ↓
Secure RTP Media Established

SDES Flow

GS-SIP INVITE
    ↓
Partner SIP Server
    ↓
100 Trying
    ↓
200 OK with crypto attributes
    ↓
ACK
    ↓
Secure RTP Media Established

Validation Checklist

Before enabling production traffic, ensure:

TLS enabled on SIP trunk
SRTP supported
Correct port exposure
Matching codec support
Proper SDP handling
DTLS fingerprints handled correctly
SDES crypto lines supported (if using SDES)

Troubleshooting

Common Issues

No Audio

Possible causes:

RTP blocked by firewall
Incorrect SRTP negotiation
ICE candidate issues

Call Disconnects After Answer

Possible causes:

Invalid SDP response
Unsupported crypto suite
DTLS negotiation failure

488 Not Acceptable Here

Possible causes:

Unsupported RTP/SAVP profile
Codec mismatch
Missing crypto attributes

Recommendation

DTLS is the recommended SRTP exchange protocol due to:

Better security
Dynamic key exchange
Improved interoperability

Recommended configuration:

{
  "is_secure": true,
  "srtp_exchange_protocol": "DTLS"
}

Important Notes

Secure media requires TLS signaling
Partner infrastructure must support SRTP
GS-SIP validates SDP security negotiation
Unsupported SRTP negotiation may result in call failure

Billing Events API (Sample Payload)

{
  "call": {
    "id": "wacid.XXXXXXXXXXXXX",
    "to": "16315XXX601",
    "from": "16315XX3602",
    "event": "terminate",
    "direction": "incoming",
    "timestamp": 1671644824,
    "status": "Completed",
    "start_time": 1671644824,
    "end_time": 1671644944,
    "duration": 120
  },
  "phone": "780XXX7021",
  "conversationType": "CALL",
  "isGsBilling": true,
  "appId": "269a4153-XXX-4590-XXXX-6e2e937836e4",
  "billable": true
}

WhatsApp Media Flow (README)

A common symptom of this issue is that the WhatsApp user hears the business audio with a 1–2 second delay. For example, if an IVR plays “1-2-3,” the user may hear it 1–2 seconds after answering the call.

To reduce this delay, we expect the customer system (partner SIP) to send the Answer SDP (200 OK) as quickly as possible after receiving the initial INVITE.

Gupshup uses an “optimistic accept” strategy. This means we pre-start the media setup before receiving the 200 OK. By the time the 200 OK arrives, the media path is already ready and audio starts immediately.

This behaviour follows RFC 8839.

Without Optimistic Accept

+---------+           +----------+           +---------+
| WhatsApp|           | Gupshup  |           | Partner |
| Agent   |           | Server   |           |  SIP    |
+---------+           +----------+           +---------+
     |                     |                     |
     | INCOMING CALL       |                     |
     |-------------------->|  INVITE             |
     |                     | ------------------->|
     |                     |                     |
     |                     | 100 Trying          |
     |                     |<--------------------|
     |    Initialize MEDIA |                     |
     |<--------------------|                     |
     |--------MEDIA------->|                     |  // Call timer starts
     |                     |                     |  // but no audio yet
     |                     |    (late) 200OK     |
     |                     |<--------------------|
     |    START MEDIA      |                     |
     |<--------------------|                     |
     |                     |                     |
     |                     | -------MEDIA------->|

With Optimistic Accept (Recommended)

+---------+           +----------+           +---------+
| WhatsApp|           | Gupshup  |           | Partner |
| Agent   |           | Server   |           |  SIP    |
+---------+           +----------+           +---------+
     |                     |                     |
     | INCOMING CALL       |                     |
     |-------------------->|  INVITE             |
     |                     | ------------------->|
     |                     |                     |
     |    Initialize MEDIA |                     |
     |<--------------------|                     |
     |                     |                     |
     |                     |   (early) 200OK     |
     |                     |<--------------------|
     |    START MEDIA      |                     |
     |<--------------------|                     |
     |--------MEDIA------->|                     | // No delay
     |                     | -------MEDIA------->|

Media IPs

Media will originate from these IPs:
- 166.117.124.43
- 76.223.74.4

Voice Analytics

Available on Partner Analytics Dashboard. Only incoming call events and duration are shown.

📘
Only Incoming voice events count of minutes will be shown

📘
The caller can be from any region, but latency may vary based on the caller’s location.

📘
Inbound Voice calls are free of charge by Meta

📘
Gupshup supports up to 1000 concurrency at the same time for each region.

If voice testing is not being done, please disable the voice icon. Leaving it enabled without proper setup can lead to the WABA being flagged or banned by Meta.

Prerequisites

How to Enable WhatsApp Voice on WABA

SIP Configuration Options

Basic SIP Call (No Registration)

SIP Call With Authentication

Troubleshooting MatrixTroubleshooting Matrix

TCP Transport Protocol Required

SIP Configuration Metadata Format

username@host:port : “sip:[email protected]:5071”. ( sip URI )

SIP INVITE Flow (For Incoming Calls)

Sample SIP INVITE Payload

Media & RTP Requirements

GS-SIP Secure Media (SRTP) Configuration

Overview

Supported Secure Media Protocols

Enabling Secure Media

Configuration Parameters

What GS-SIP Sends

DTLS Flow

SDP Media Line

DTLS SDP Attributes

SDES Flow

SDP Media Line

SDES SDP Attributes

Partner Requirements

Required SIP Response

Example DTLS Response

Example SDES Response

Supported Codecs

TLS Requirements

ICE Support

Call Flow Summary

DTLS Flow

SDES Flow

Validation Checklist

Troubleshooting

Common Issues

No Audio

Call Disconnects After Answer

488 Not Acceptable Here

Recommendation

Important Notes

Billing Events API (Sample Payload)

WhatsApp Media Flow (README)

Without Optimistic Accept

With Optimistic Accept (Recommended)

Media IPs

Voice Analytics

Only Incoming voice events count of minutes will be shown

The caller can be from any region, but latency may vary based on the caller’s location.

Inbound Voice calls are free of charge by Meta

Gupshup supports up to 1000 concurrency at the same time for each region.

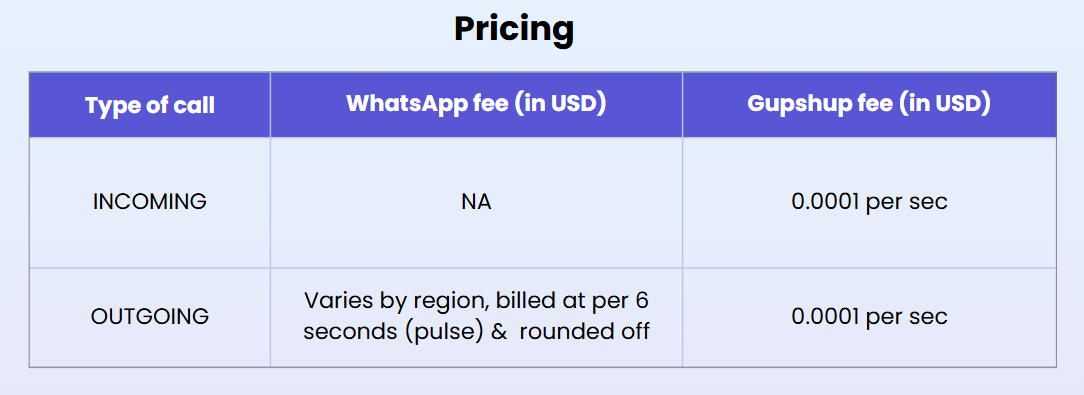

OUTGOING CALL (Business initiated) (Tier-based pricing for higher than 50,000 call minutes per month will also be available from Meta. Check here)

Please check the WhatsApp voice calling rates.
